Mini Steam Boiler (SMB)

· Ecomonic	:	① Micro smoke tube type structure that best fitness in small space installation. ② Realize high effectivenedd by optimum internal pressure in flue and installation of air pre-heater. ③ Reduce the fuel cost by reserve subordinate time (within 15 minutes) ④ It is horizontal type combusting structure with long-range of life-time durability
· Convenience	:	① Automatic controlling system that all functions are achieved perfectly by single-touch ② Great convenience to manage and operate by the built in type additional equipment which related to automation. ③ High safety by the double or triple safety control system ④ Easy to manage and repair by the manual control system
· Place to use	:	Fiber / Sewing factory / Chemical factory / Heating and hot-water supply / Sauna / Dye works / Hotel / Hospital / Drying rack / Laboratory / Bean curd factory / Brewery / Food factory / Drying rack / Brickyard / Deposit factory etc...

Division / Type			SMB-100	SMB-150	SMB-200	SMB-250	SMB-300	SMB-350	SMB-400	SMB-500
Proper Form of Evaporation		kg/h	1,000	1,500	2,000	2,500	3,000	4,000	5,000	6,000
Max. Working Pressure		kg/㎠	10{1.0MPa}
Efficiency		%	More than 90%
Electric Transmission Area		㎡	13	21.6	24	32.3	42	49.7	55	66
Weight		Ton	2.2	2.5	2.8	3.2	4.0	4.5	5.2	6.3
Titration		ℓ	1,300	1,383	1,687	1,927	2,775	3,013	5,303	6,890
Fuel Consumption	Light Oil	kg/h	67.5	101.3	135.1	168.9	202.6	236.4	270.2	337.7
	LNG	N㎥/h	70.3	105.4	140.6	175.7	210.8	246	281.1	351.4
	LPG	N㎥/h	31.1	46.6	62.2	77.7	93.3	108.8	124.4	155.4
	Heavy Oil	kg/h	68.2	102.3	136.4	170.5	204.6	238.7	272.8	341.1
Capacitance of Electric		kW	4.8(6.35)	6.35(8.1)	8.45(10.45)	10.45(10.45)	11.25(14.75)	16.2	16.2(20.2)	20.2
Joint Valve	Main Steam Valve	A	50	65	80	80	80	100	100	125
	Progression Valve		25	25	40	40	40	40	40	40
	Drainage Valve		40	40	40	40	40	40	40	40
	Safety Valve		25	32	40	40	40	50	25,40	40×2
	Feed Oil Valve		20	20	25	25	25	25	25	25
	Fuel Gas		25	40	40	40	50	50	50	50
	Chimney	ømm	300	350	400	500	550	580	600	650

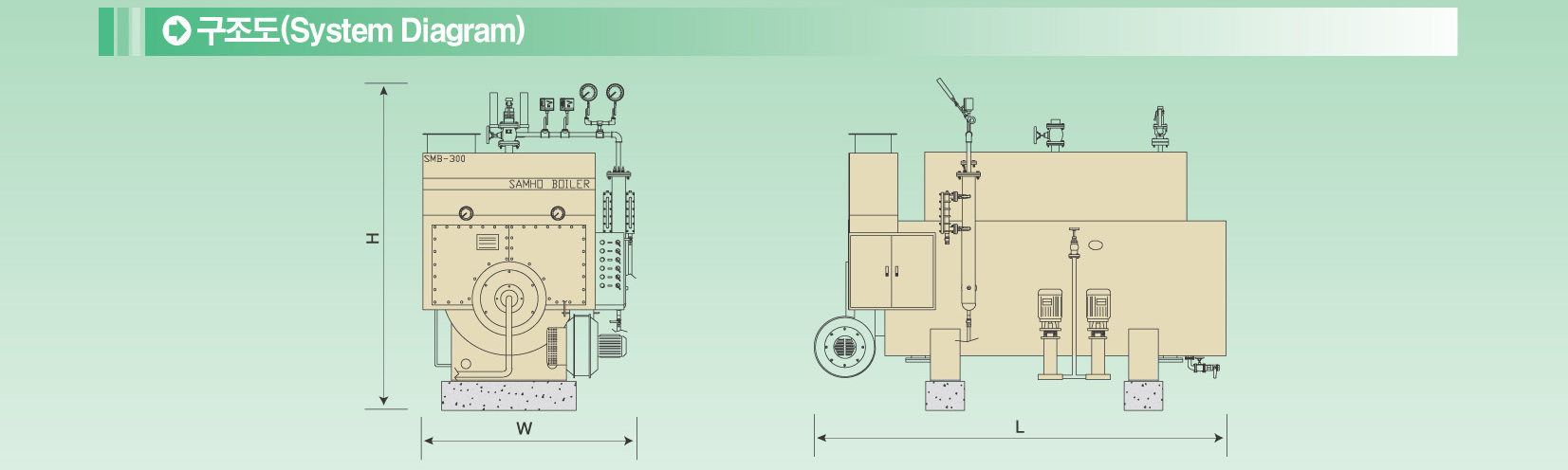

Minimum Dimension	Width	mm	1,300	1,340	1,450	1,450	1,710	1,800	2,140	2,240
	Length		2,950	3,070	3,203	3,570	3,620	3,620	4,100	4,890
	Height		2,040	2,130	2,377	2,500	2,587	2,800	2,920	3,210
Maximum Dimension	Width	mm	1,980	2,074	2,200	2,248	2,640	2,800	2,980	3,328
	Length		3,000	3,164	3,420	3,420	3,840	3,840	4,320	5,240
	Height		2,290	2,400	2,500	2,900	3,020	3,320	3,570	3,780

※ Low calorific power of fuel
① LNG：41.45 MJ/N㎥{9,900kcal/N㎥}, ② LPG{Propane}：93.7 MJ/N㎥{22,380kcal/N㎥},
③ Light Oil：43.12 MJ/kg{10,300kcal/kg}, ④ Heavy Oil：42.7 MJ/kg{10,200kcal/kg}

※ The specification list are subject to change without prior notice to improve the performance and technology

development.
