Multi Tube Boiler (SMS)

· Economic	:	① Steam pressure occurrence within 3 minutes after operation ② No license, No-examination (Except for using Gas) ③ It is possible to install in a small space. ④ Water supply preheating by using waste heat (more than 50°C of withdrawal temperature)
· Convenience	:	① Automatic controlling system that all functions are achieved perfectly and conveniently by single-touch. ② Easy to manage and repair by the manual control system ③ Great convenience to manage and operate by built in type additional equipment which related to automation ④ High safety by the double or triple safety control system
· Place to use	:	Restaurant / Sauna / Fiber needle work / Dye works / Brewery / Bean curd factory / Chemical factory / Heating and hot-water supply / Brickyard / Socks fabrication plant / Noodles factory / Baking And Pastry Arts / Rice cake factory etc..

Division / Type			SMS-200	SMS-300	SMS-400	SMS-500	SMS-800	SMS-1000	SMS-1500	SMS-2000	SMS-2500	SMS-3000
Proper form of Evaporation		kg/h	200	300	400	500	800	1,000	1,500	2,000	2,500	3,000
Max. Working Pressure		kg/㎠	10{1.0 MPa}
Efficiency		%	More than 88%				More than 90%
Electric Tranmission Area		㎡	4.9	4.9	4.99	4.99	9.9	9.97	9.97	23.9	31	40.4
Weight		Ton	0.6	0.6	0.8	0.9	1.85	1.98	2.2	3.0	3.5	4.2
Titration		ℓ	68	96	98	98	120	195	200	310	370	450
Fuel Consumption	Light Oil	kg/h	13.8	20.7	27.6	34.5	54.0	67.5	101.3	135.1	168.9	202.6
	LNG	N㎥/h	14.4	21.6	28.7	35.9	56.2	70.3	105.4	140.6	175.7	210.8
	LPG	N㎥/h	6.4	9.5	12.7	15.9	24.9	31.1	46.6	62.2	77.7	93.3
	Heavy Oil	kg/h	14.0	20.9	27.9	34.9	54.6	68.2	102.3	136.4	170.5	204.6
Capacitance of Electric		kW	1.0	1.12	1.55	2.25	5.6	6.3	8.1	11.95	15.45	15.45
Joint Valve	Main Steam Valve	A	25	25	32	40	50	50	65	80	80	100
	Progression Valve		15	20	20	20	25	25	25	32	32	32
	Drainage Valve		25	25	25	25	25	32	32	32	32	32
	Safety Valve		32(저)	32(저)	40(저)	40(저)	25(전)	25(전)	32(전)	40(전)	40(전)	40(전)
	Drain Oil Valve		15	15	15	15	20	20	20	25	25	25
	Fuel Gas		32	32	40	40	40	50	50	50	40	50
	Chimney	ømm	200	250	250	250	300	300	300	400	450	500

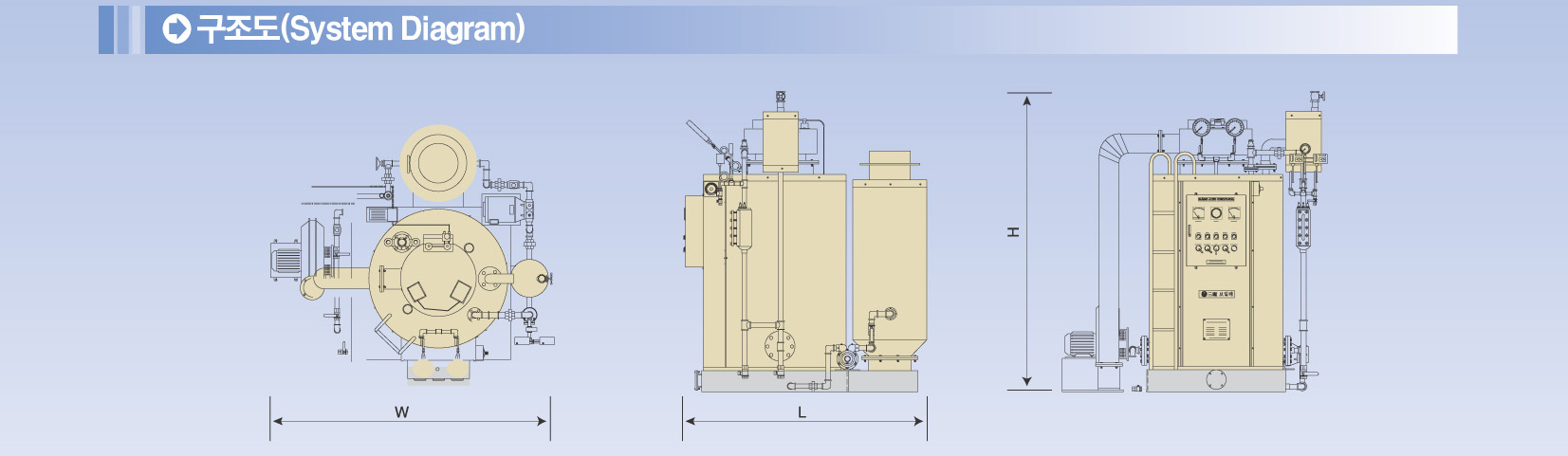

Minimum Dimension	Width	mm	800	890	900	900	1.072	1.286	1.320	1.702	1.856	1.900
	Length		1,020	1,147	1,147	1,147	1,703	1,876	1,976	2,219	2,600	2,730
	Height		1,300	1,345	1,383	1,400	1,647	1,838	1,838	2,376	2,800	2,544
Maximum Dimension	Width	mm	996	1,000	1,030	1,030	1,650	1,650	1,680	2,800	2,800	3,040
	Length		1,237	1,400	1,400	1,400	1,900	1,980	1,980	3,000	3.040	3.040
	Height		1,600	1,820	1,820	1,920	2,280	2,380	2,380	2,980	3,300	3,400

※ Low calorific power fuel
① LNG：41.45 MJ/N㎥{9,900kcal/N㎥}, ② LPG{Propane}：93.7 MJ/N㎥{22,380kcal/N㎥},
③ Light Oil：43.12 MJ/kg{10,300kcal/kg}, ④ Heavy Oil：42.7 MJ/kg{10,200kcal/kg}

※ The specification list are subject to change without prior notice to improve the performance and technology

development.
