Medium Size Warm Water Boiler(SHW)

· Economic	:	① Strengthening/Enhancing durability prevent from corrosion due to the condensation phenomenon ② Realize the high combustion efficiency by te forced draft type ③ Reduce the maintenance cost due to No-license and No-examination.
· Convenience	:	① Automatic controlling system that all functions are achieved perfectly and conveniently by single-touch ② High safety by the double or triple safety control system. ③ Easy to treat and manage by one-type arrangment of automated equipment ④ Elegant and compact appearance
· Place to use	:	Sauna / Heating and Hot-water supply / Farm / Hospital / Fish farm / Dormitory / Hotel etc...

Division / Type			SHW-500R /535R	SHW-700R /735R	SHW- 1000R /1035R	SHW- 1500R /1535R	SHW- 2000R /2035R	SHW- 3000R /3035R	SHW- 4000R /4035R
Rated Output		kcal/h	50,000	70,000	100,000	150,000	200,000	300,000	400,000
Electric Transmission Area		㎡	2.2	3.1`	3.18	4.9	6.3	12.9	14
Efficiency		%	More than 88%
Power Consumption		kW	0.15	0.15	0.15	0.25	0.37	0.37	0.74
Heating Floor Space		floor below	100	140	200	300	400	600	800
Titration		ℓ	95	134	193	230	260	650	1000
Wieght		Ton	0.29	0.35	0.40	0.44	0.57	1.80	2.0
Fuel Consumotion	Light oil	kg/h	5.5	7.7	11	16.5	22.1	33.1	44.1
	LNG	N㎥/h	5.7	8	11.5	17.2	23	34.4	45.9
	LPG(Propane)	N㎥/h	2.5	3.6	5.1	7.6	10.2	15.2	20.3
	Heavy Oil	kg/h	5.6	7.8	11.1	16.7	22.3	33.4	44.6
Joint Valve	Feed Inlet	A	15	15	15	15	15	15	15
	Gas Inlet	A	20	20	20	20	25	50	50
	Hot Water In-Out	A	15	15	15	20	20	25	25
	Heating In-Out	A	50	65	65	80	80	100	100
	Chimney	ømm	150	150	200	250	250	250	250

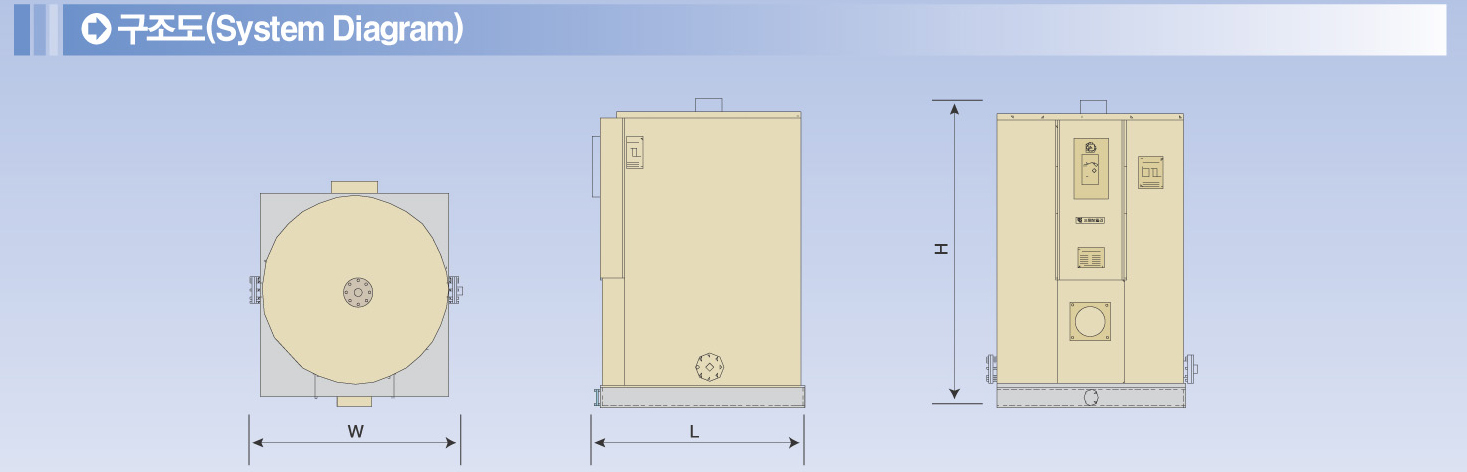

External Form	Width	mm	980	980	1055	1090	1135	1740	1910
	Length	mm	1350	1350	1470	1521	1565	1805	2395
	Height	mm	1410	1755	1760	1950	2125	2375	2395

※ Low calorific power of fuel
① LNG：41.45 MH/N㎥{9,900kcal/N㎥}, ② LPG{Propane}：93.7 MJ/N㎥{22,380kcal/N㎥}
③ Light Oil：43.12 MJ/kg{10,300kcal/kg}, ④ Heavy Oil：42.7 MJ/kg{10,200kcal/kg}

※ The specification list are subject to change without prior notice to improve the performance and technology

development.
